e-MMC for Consumer & Industrial

e-MMC: The Right Choice for Lower Densities

KIOXIA’s broad, high-performance lineup of e-MMC products is equipped with an integrated controller that supports a high-speed memory interface compliant with JEDEC Version 5.0/5.1, eliminating the need for the host processor to directly control flash memory.

e-MMC remains an important solution for many applications that cannot migrate to the latest generation of UFS, due to lower density requirements, or because the processor does not yet support a UFS interface. Fabricated with solutions that utilize a 15nm process technology or the more advanced BiCS FLASH™ 3D flash memory, e-MMC is well-suited to a wide range of applications requiring e-MMC as an embedded memory solution.

Key KIOXIA e-MMC Features

  • Parallel interface
  • C-Temp (-25℃ to 85℃) 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
  • I-Temp (-40℃ to 105℃) 8GB, 16GB, 32GB
  • 11.5 x 13mm 153ball BGA package (4GB also offered in 11 x 10mm package)
  • JEDEC Standard

KIOXIA e-MMC Key Technology

Security - RPMB (Replay Protected Memory Block)

RPMB allows only authenticated access and prevents unauthorized data from being accessed in an RPMB partition. A unique authorized key is paired between the e-MMC device and the host. If e-MMC is paired with a different host (or vice versa), the RPMB partition will be inaccessible.

Automatic Sudden Power Loss Protection (PLP)

Ensures all data that has been stored in NAND will remain intact and not corrupted if sudden power loss occurs. This built-in feature automatically restores the original data if writes are not completed before power loss occurs without the need for external capacitors or system back up power.

Well Established Ecosystem

e-MMC has broad ecosystem support with open source software, chipsets and drivers. It supports lower density storage requirements and allows for easy adoption with low design-in effort.

KIOXIA e-MMC Key Applications

Notebook / Ultrabook™ / Tablet / Desktop PC / Gaming PC

Smartphone / Smartwatch / Smart glasses

Game console / Smart TV / Virtual Reality Headsets / Set-Top-Box/Digital Video Recorder / Smart speaker / Smart home / Wearables / Home Health / Home Network

Automation / Digital Healthcare / Transportation / Surveillance / Robot / Drone / Security / Digital Signage / Networking (5G area network) / PoS (Point of Sales)

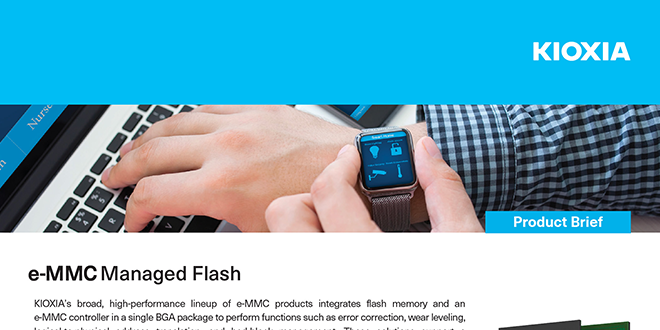

Learn and Evaluate

Consumer Grade e-MMC Specs

*Table can be scrolled horizontally.

Capacity Part Number e-MMC Version Max Data Rate
(MB/s)
Supply Voltage Operating Temperature
(℃)
Package Size
(mm)
VCC (V) VCCQ (V)
4GB
THGBMNG5D1LBAIT 5.0 400 2.7 to 3.6 1.70 to 1.95,
2.7 to 3.6
-25 to 85 11.0x10.0x0.8
THGBMTG5D1LBAIL 11.5x13.0x0.8
8GB THGBMUG6C1LBAIL 5.1
16GB THGAMVG7T13BAIL 1.70 to 1.95
32GB THGAMVG8T13BAIL
64GB THGAMVG9T23BAIL
64GB THGAMSG9T24BAIL
64GB THGAMSG9T15BAIL
128GB THGAMVT0T43BAIR 11.5x13.0x1.0
128GB THGAMST0T24BAIL 11.5x13.0x0.8
128GB THGAMST0T25BAIL

Industrial Grade e-MMC Specs

*Table can be scrolled horizontally.

Capacity Part Number e-MMC Version Max Data Rate
(MB/s)
Supply Voltage Operating Temperature
(℃)
Package Size
(mm)
VCC (V) VCCQ (V)
8GB THGBMJG6C1LBAU7 5.1 400 2.7 to 3.6 1.70 to 1.95,
2.7 to 3.6
-40 to 105 (1) 11.5x13.0x1.0
16GB THGBMJG7C2LBAU8 11.5x13.0x1.2
32GB THGBMJG8C4LBAU8
  1. Tc=115°C max.
  • Contact the KIOXIA Corporation's sales representative for sample schedule about new products.
  • Details about your intended usage would be checked before submitting samples of the Industrial grade products.
